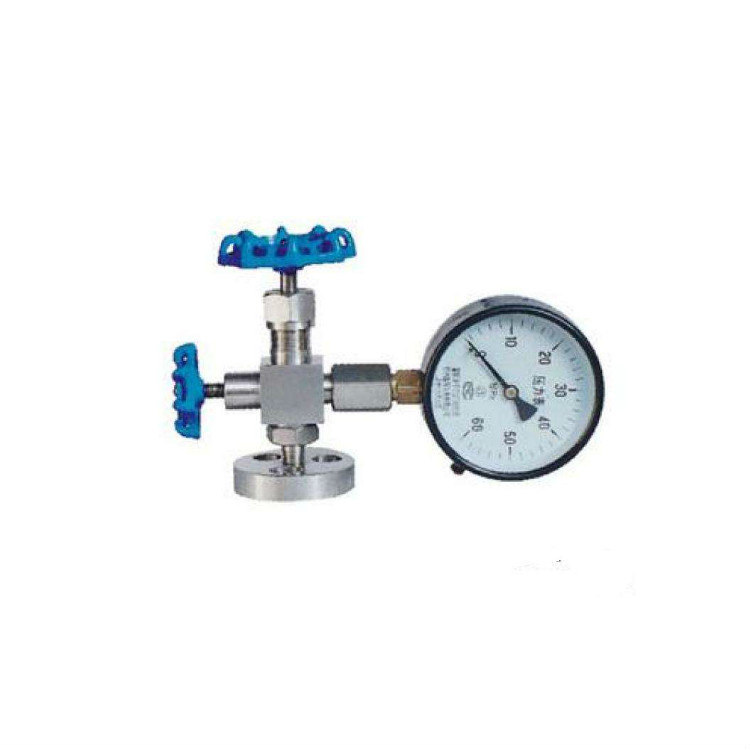

J49H-1.6/32P型法蘭式壓力表針形閥 J49H-1.6/32P型法蘭式壓力表針形閥 外形尺寸圖 主要零件材料 零件名稱 Part name | 閥體 BODY | 閥桿 Stem | 閥底座 Base | 填料 PACKING | 填料閥蓋 Packing bonnet | 手輪 Hand wheel | J49H-320-DN3 | 碳鋼 Carbon steel | 鉻不銹鋼 Cr,Stainless steel | 聚四氟乙稀、 柔性石墨 PTEF,Soft graphite | 碳鋼 Carbon steel | 優質碳鋼 High grade carbon steel | J49H-320P-DN6 | 鉻鎳不銹鋼 Cr,Ni Stainless steel | 鉻不銹鋼 Cr,Stainless steel | 鉻鎳不銹鋼 Cr,Ni Stainless steel | 不銹鋼 Stainless steel |
主要性能規范 型號 Type | 公稱壓力(MPa) Nominal Pressure | 試驗壓力PS(MPa)Test pressure | 工作壓力 (MPa) Working Pressure | 工作溫度(℃) Working Temperature | 適用介質 Suitable | 殼體 (MPa) Shell | 密封 (液) Seal | 密封 (氣) Seal | J49H-320 | 32.0 | 48.0 | 35.2 | 0.6 | 32.0 | P≤540℃ | 液化石油氣水、酸、蒸汽、油品等 Petroleum gas Water,Asic,Steam, Oil etc. | J49H-320P | 32.0 | 48.0 | 35.2 | 0.6 | 32.0 | C≤425℃ |
主要外型及連接尺寸 型號 Type | 公稱直徑DN(mm) Nominal diameter | 尺寸 Dimensions | 重量(Kg) Weight | L1 | D1 | D2 | H | H1 | L2 | h | hˊ | M1 | L3 | J49H-320 | 3 | 60 | 65 | 50 | 88 | 100 | 60 | 15 | Ф70 | M20×1.5 | 16 | 1.3 | J49H-320P | 6 | 60 | 65 | 50 | 88 | 100 | 60 | 15 | Ф70 | M20×1.5 | 16 | 1.3 |
