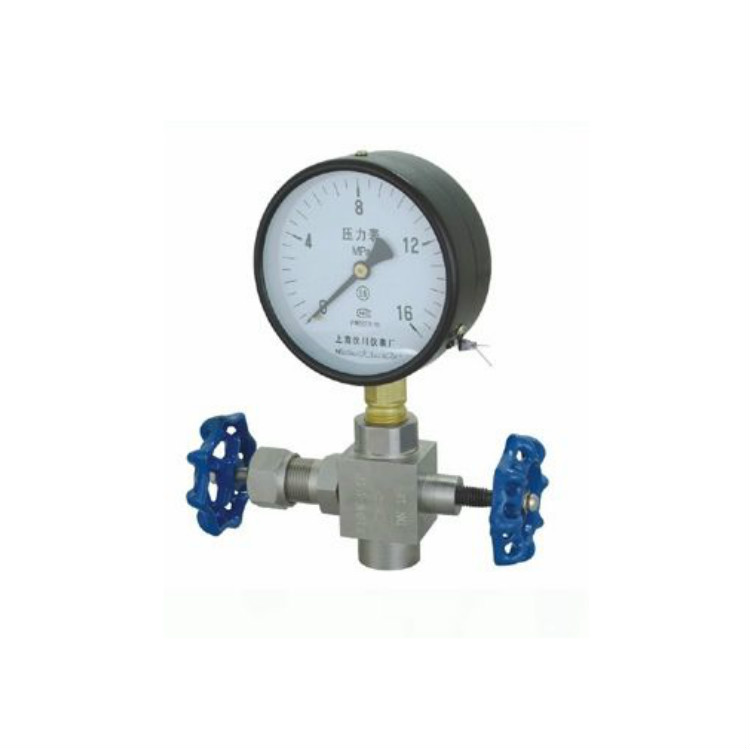

J19H-1.6/32P型壓力表針形閥 外形尺寸圖 主要零件材料 零件名稱 Part name | 閥體 BODY | 閥桿 Stem | 閥底座 Base | 填料 PACKING | 填料閥蓋 Packing bonnet | 手輪 Hand wheel | J19H-320-DN6 | 碳鋼 Carbon steel | 鉻不銹鋼 Cr,Stainless steel | 聚四氟乙烯、 柔性石墨 PTEF,Soft graphite | 碳鋼 Carbon steel | 優質碳鋼 High grade carbon steel | J19W-320P-DN15 | 鉻鎳不銹鋼 Cr,Ni Stainless steel | 鉻不銹鋼 Cr,Stainless steel | 鉻鎳不銹鋼 Cr,Ni Stainless steel | 不銹鋼 Stainless steel |
主要性能規范 型號 Type | 公稱壓力(MPa) Nominal Pressure | 試驗壓力PS(MPa)Test pressure | 工作壓力(MPa) Working Pressure | 工作溫度(℃) Working Temperature | 適用介質 Suitable | 殼體 (MPa) Shell | 密封 (液) Seal | 密封 (氣) Seal | J19H-320 | 32.0 | 48.0 | 35.2 | 0.6 | 32.0 | P≤540℃ | 液化石油氣水、酸、 蒸汽、油品等 Petroleum gas Water, Asic,Steam, Oil etc. | J19W-320P | 32.0 | 48.0 | 35.2 | 0.6 | 32.0 | C≤425℃ |
主要外型及連接尺寸 型號 Type | 公稱直徑DN (mm) Nominal diameter | 尺寸 Dimensions | 重量(Kg) Weight | L1 | Do | D2 | D1 | H | H1 | M1 | RC | J19H-320 | 6 | 100 | 65 | 14 | 5 | 100 | 110 | M20×1.5左 | - | 1.2 | J19W-320P | 15 | 85 | 65 | - | - | 100 | 110 | M20×1.5 | G1/2〞 | 1.0 |
