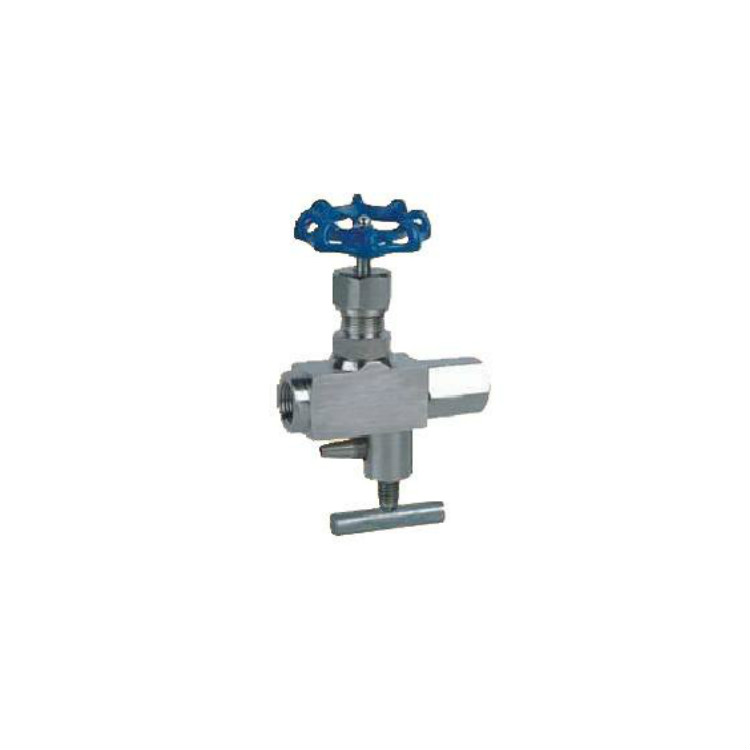

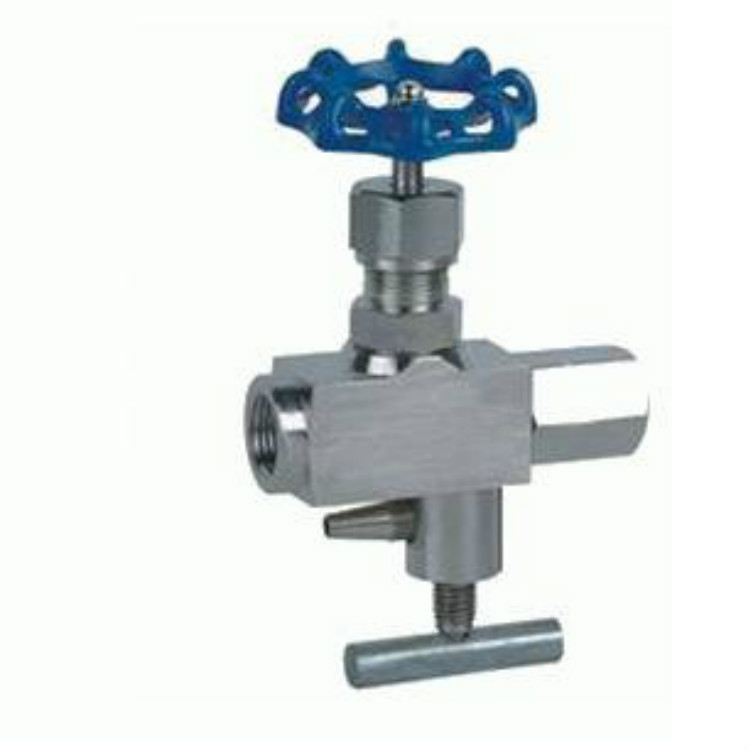

CJ123H-1.6/32P型多功能壓力表針形閥 外形尺寸圖 主要零件材料 零件名稱 Part name | 閥體 BODY | 閥桿 Stem | 閥底座、法蘭 Base,F(xiàn)lange | 填料 PACKING | 填料閥蓋 Packing bonnet | 手輪 Hand wheel | CJ123H-250-DN15 | 鉻鎳不銹鋼 Cr,Ni Stainless steel | 鉻鎳不銹鋼 Cr,Ni Stainless steel | 鉻鎳不銹鋼 Cr,Ni Stainless steel | 聚四氟乙稀、柔性石墨 PTEF,Soft graphite | 不銹鋼 Stainless steel | 優質碳鋼 High grade carbon steel |
主要性能規范 型號 Type | 公稱壓力(MPa)Nominal Pressure | 試驗壓力PS(MPa)Test pressure | 工作壓力(MPa) Working Pressure | 工作溫度(℃) Working Temperature | 適用介質 Suitable | 殼體 (MPa) Shell | 密封 (液) Seal | 密封 (氣) Seal | CJ123H-250-DN15 | 25.0 | 37.5 | 27.5 | 0.6 | 25.0 | P≤540℃ | 液化石油氣水、酸、 蒸汽、油品等 Petroleum gas Water,Asic, Steam, Oil etc. | C≤425℃ |
主要外型及連接尺寸 型號 Type | 公稱直徑DN(mm) Nominal diameter | 尺寸 Dimensions | 重量(Kg) Weight | RA | RC | Do | H | H1 | d | CJ123H-320-DN15 | 15 | M20×1.5 | G1/2〞 | 65 | 100 | 110 | 5 | 1.4 |
